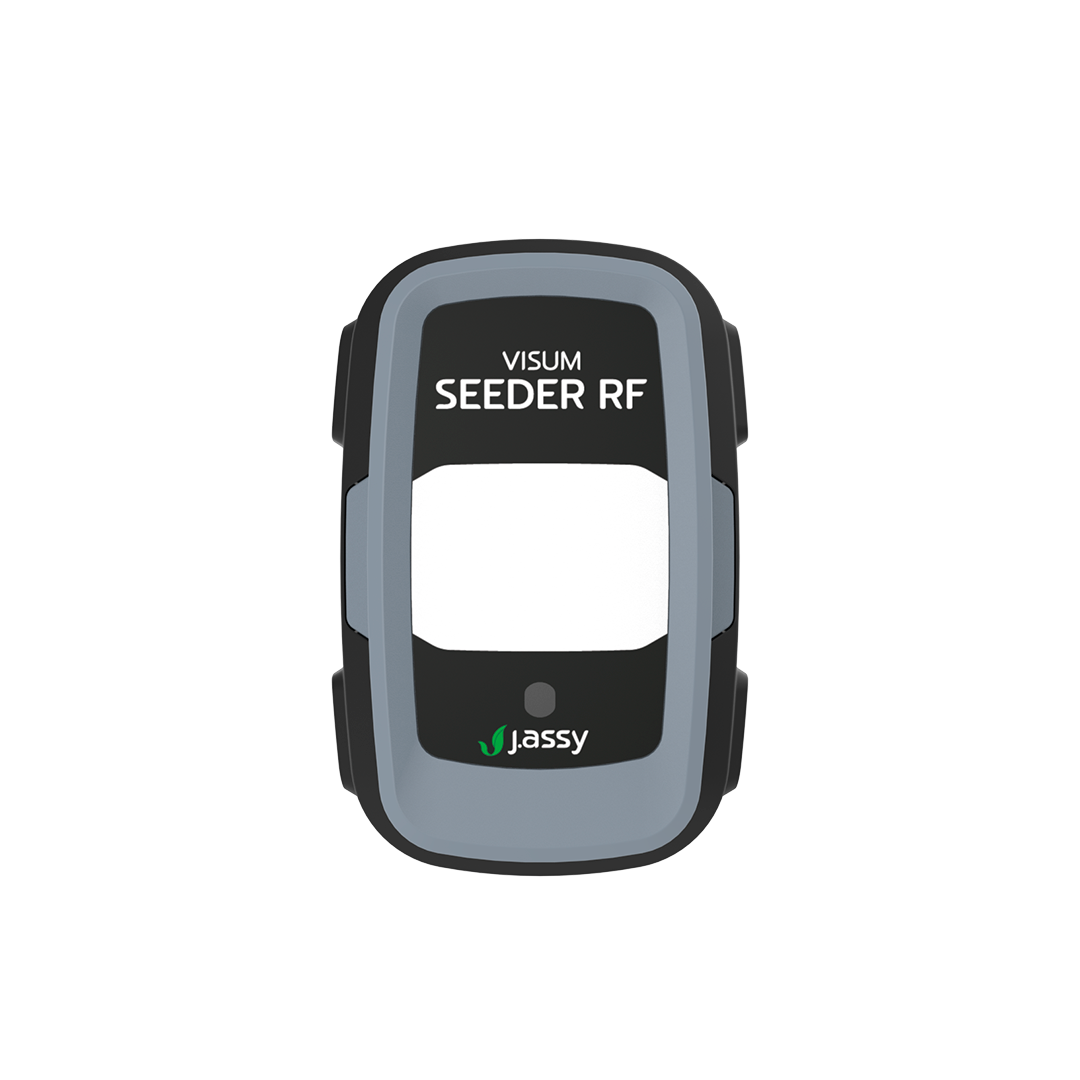

VISUM SEEDER RF

Wireless Relative Flow Sensor for Air Seeders

Our non-invasive wireless relative flow sensor is designed to identify flow variations between rows of seed and fertilizer of pneumatic distribution machines.

Request Quote

PRODUCT OVERVIEW

What is the Visum Seeder RF?

The VISUM Seeder RF is the technology that allows the farmer to remotely monitor the presence of fertilizer and seed flow by providing warnings for both full and partial blockages thanks to its relative flow capabilities.

When there is a disruption in the metered flow, a quick response is sent to the user, allowing for a swift reaction and minimizing losses.

Externally mounted with no hose cuts required. Long-lasting replaceable batteries eliminate the need for inter-sensor wiring.

Up to 360

ROWS MONITORED

4,000h

BATTERY LIFE

Up to 3

BOOMS

COMPATIBLE EQUIPMENT

Machine Types

The Visum Seeder RF is engineered for air seeder machines.

AIR SEEDER

Pneumatic Air Delivery System

Air seeders use a centralized air delivery system to carry seeds and fertilizer through hoses to each row unit.

The Visum Seeder RF clamps directly onto the distribution hoses, monitoring the relative flow of every single row in real time with no modifications needed.

WHAT THE SENSOR MONITORS

Relative seed and fertilizer flow per hose line
Full blockages — zero flow detected in a row
Partial blockages — flow significantly below other rows
Cross-manifold anomalies — issues in primary airstream runs

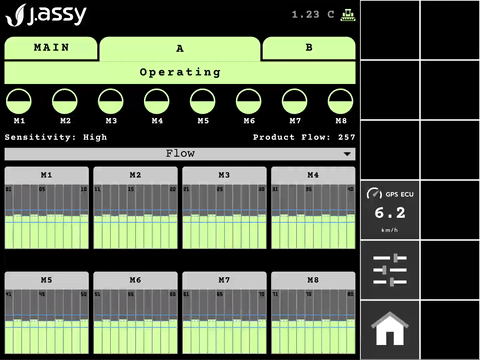

ISOBUS DISPLAY COMPATIBILITY

Any ISOBUS-certified in-cab monitor
Adapter Cables available for the majority of ISOBUS 11783 compatible systems
No additional display required — The J.Assy app uses the Virtual Terminal of your existing in cab ISOBUS monitor!
IBBC connector (9-pin jack) required

DIFFERENT MACHINE?

Using a Strip-Till machine?

J.Assy has a dedicated sensor built specifically for strip-till operations: the Visum Strip-Till.

See Visum Strip-Till →

TECHNOLOGY

Relative Flow Monitoring

Instead of only detecting a full blockage in the hose, the Visum Seeder RF uses a Relative Flow system — showing the flow variation that each distribution hose has compared to the others of the same manifold.

The system also compares flow between manifolds, identifying anomalies on your primary airstream runs.
